OO Thinking







By


Article #5 - Apr 2001

Abstract


    For those who haven't read the previous articles, be sure to read the statement of purpose first.  This month, we're going to discuss OO thinking.  For those looking to read the whole series locally or information about upcoming articles, you can check the MST page.  For those looking for further information on learning Squeak, here are some good resources.
    This is the last planned article for this series.  The reader interest has been high enough for me to continue with the next series, but unfortunately my available writing time has quickly dwindled :-( as my wife nears her due date :-)  So this will be the last regular article at least for a while.

Quote of the day

Reason never changed a man's opinion which by reason he never acquired.
        -- Mark Twain

OO Thinking

    If you're just getting into OO from another programming background, you'll soon realize that it requires a change in the way that you think, the way you approach problems, and (IMHO) how much fun you're having.  This month, we go over some things to keep in mind when doing OO programming.


Breaking Linear Thinking

    This is the first hurdle I've seen many people trip over.  They're so used to programs with a main() routine of some sort, that when they first dip their toes into the Smalltalk pool they're frightened off by not being able to find a linear beginning, middle, and end of something.  Realize that Smalltalk is about working with a group of collaborating objects.  To be sure, you will need some entry point to your code/application, however it likely be in the form of opening your starting window, then saving/stripping your image.
    Thinking of problems in terms of nouns and verbs (objects and responsibilities) is a more natural way of thinking, and often leads to a much different decomposition of the problem than functional decomposition.  Try to identify which objects are inherit to the problem, which objects need to involved to help out, then think of the most basic responsibilities and distribute them appropriately across the objects.
    This leads us to our next item:  OO programming lends itself well to iterative development.  It's a natural activity to define the basic objects, then start adding basic relationships and responsibilities.  If you find something doesn't fit right, then shift the responsibility elsewhere.  Flesh out your objects and responsibilities over time.
    Try to use short methods to help maximize reuse and maintainabilty.  If you find yourself writing 100 line methods, then you're still thinking linearly.  The average method length varies depending on whom you ask, but it should be short - somewhere around 8 statements or so.  Of course, there's always exceptions to any rule - this is just a rule of thumb.

Decision Making vs Commanding

    This is what I often think is the most fundamental difference between OO programming and procedural programming.  In procedural programming it's common to do things in terms of decision making.  You do things like:     A common problem that arises from decision making programming is that you have similar decision making being done in several parts of a program.  Then when requirements or needs inevitably change, there are many different spots that you need to update/modify your program to update all the decision making spots.

    In OO programming, it's more common to do things in terms of commanding.  You command (or ask if you're polite) objects to do things.  If the object shouldn't do something, or should do something differently, then it should know that.  Since you ask different objects the same thing, and they respond as each of them should, there's no decision making.  You do things like:

Don't Sweat the Details

    I once heard Alan Knight remark that you know somebody is starting to get Smalltalk if they answer the question:  "How does Transcript show: 'HELLO WORLD' work?" with: "I don't care".   A common theme among Smalltalk newbies is a need to know exactly how everything works, and step through all the methods of the objects from the library that they use.  This is related to linear thinking, in that you need to understand how a linear path flows to determine how it broke down the road.  If you find yourself sweating the details of the class library, then you're probably still in linear thinking mode.
    A related theme is that Smalltalk lends itself to top-down coding.  Put off work as long as possible and put off decisions as long as possible - abstract and stub out reponsibilities if you can.  It's a powerful feeling to define even a trivial system that works, then keep it working as you add real meat to it.  You're most often in a state of things working.

Simplification by Encapsulation

    Try and group data together with appropriate operations in an object.  If you're acting directly on an object's data in some manner, then you're breaking encapsulation.  If you're doing something like:  anObject aDataAttribute aPartOfAttribute doSomething, then you're breaking encapsulation.
    A nice example of encapsulation is the looping noted above.  The collection class knows how many elements it has, and how to loop over its elements, and you're not concerned with bounds checking nor should you be.

Reuse

Opportunities for reuse abound, and not just from the usual place of inheritence

...through the class library

    Before coding something, browse the class library to see if it's already been done for you.  Reinventing the wheel is definately non-OO and wastes time.
    Another rule of thumb for knowing when you're getting Smalltalk is the proportion of time you spend browsing the class library to the proportion of time you spend coding.  As you gain experience and familiarity with the library, your proportion of time will go down, but for a beginner you should expect to spend the majority of your time browsing the library and the minority of your time coding.
    An appropriate remark I once heard (sorry, don't remember the source), during a LOC metrics flame war is that Smalltalkers should be measured by the LOC they don't write, as they're saving time and maintentance costs by reusing the class library.

...through goodies

    Smalltalk has a rich history and a great user community.  There may be a freeware or opensource goodie out there that will satisfy your needs.  Have a look at the UIUC repository, or search the web or ask the newsgroups for goodies.

...by approrpiate responsibilities

    If it isn't your reponsibility, then don't do it (or redo it).  Conversely, avoid responsibilities as much as possible (only take the appropriate responsibilities).  By trying to stick to only appropriate responsibilities, then you're more likely to reuse responsibilities elsewhere in the system.
    For example, don't have the responsibility to login to your application in your client's login GUI (a bad practice in general), if you later have a web GUI, then you need to either copy the login logic to your web GUI, or factor out the login code to a reusable object.

...through inheritence

    Now we finally get to reuse through inheritence.  I leave this for last, as reuse through inheritence has been (IMHO) overhyped and often overabused with needlessly deep class hierarchies that complicate maintenance.
    For example, if you're writing a hospital system you'd probably want to reuse a Person's characteristics of firstName, lastName, and socialSecurityNumber by making subclasses of Doctor and Patient.

Distributing responsibilities

    Watch out for bloated parts of system - you can see this if you're drawing your system out and your diagram looks like an octopus.  This is a sign that there are too many responsibilities on one object, and that object is going to get harder to maintain as it bloats.  You should try and have groups of peer objects collaborating.
    Another warning sign is using a 'manager' object.  Again, there are perfectly good times and uses for a manager object, and it can be difficult to determine if you're abusing a manager object.  I like to use a rule of thumb I heard from Alan Knight: object managers should be like real world managers:  they should not do any real work - they should facilitate or manage interactions between other objects.

A Sweet Squeak

This month's sweet squeak is the release of Squeak 3.0! :-)  To be generic as possible, this description covers the scenario where you want to run Squeak in Windoze or Linux.   For this simple path install, on Linux you will need root priviledges.  (Note: you can install without root privilidges if you're familiar with updating your paths, I'm not going to cover that topic in this simple guide)


Step 1:  Downloading Squeak 3.0

Go to the FTP site: ftp://st.cs.uiuc.edu/pub/Smalltalk/Squeak/3.0 and download:

Step 2: Set a base directory to run squeak from

Assumes your Windoze mount point is /windoze, change for your system.

Note:  if you don't have/want to run dual boot, just change your install location to be whatever you desire, for example: ~myuserid/squeak3, and delete the unnecessary files: NPSqueak.dll, Squeak.exe, SqueakFFIPrims.dll.

Step 3: Installing VM for linux

This is a very easy thing to do - even if you've never programmed or compiled anything in your life before.  Here are the steps:
  1. Unzip Squeak-3.0pre2.tar.gz to wherever (be sure to unzip with directories, this unzips into a Squeak-3.0 directory)
  2. cd to where you unzipped the sources.  (The BUILD.UnixSqueak is a quick-n-easy guide from which these steps were condensed from)
  3. mkdir build
  4. cd build
  5. ../src/unix/configure --bindir="/windoze/squeak3"
  6. make
  7. make install  (NOTE:  here is where you'll need root privilidges with the default install, as stuff is copied to /usr/lib, /usr/man, etc)
    1. Here, you're going to get a couple of errors (unless you're installing to a Linux location), as you can't make links on a Windoze file system
    2. Copy the referenced files to your /windoze/squeak3 directory:
    3. cp /usr/lib/squeak/3.0/squeak /windoze/squeak3
    4. cp /usr/lib/squeak/3.0/inisqueak /windoze/squeak3

Step 4: Start Squeak :-)

...I'll leave starting up Squeak in Windoze as an exercise for the reader  ;-)

Quick tour

    When I started up the image for the first time, I was pleasently surprised that the default GUI to come up is the newer morphic GUI (as opposed to the older MVC GUI that was mentioned in Article 1).  For the read-along folks, you'll see (click on the below half size images for full size images):

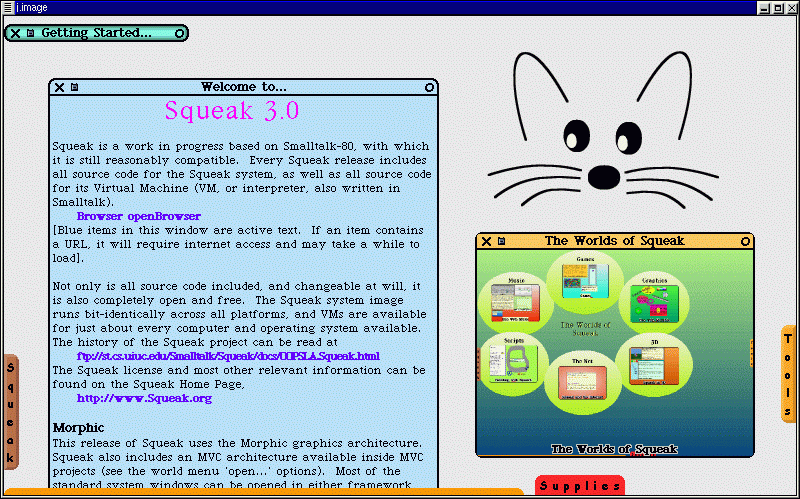

The entry screen.  The Squeak logo in the top right is an xeyes type of app, where the eyes follow the mouse.

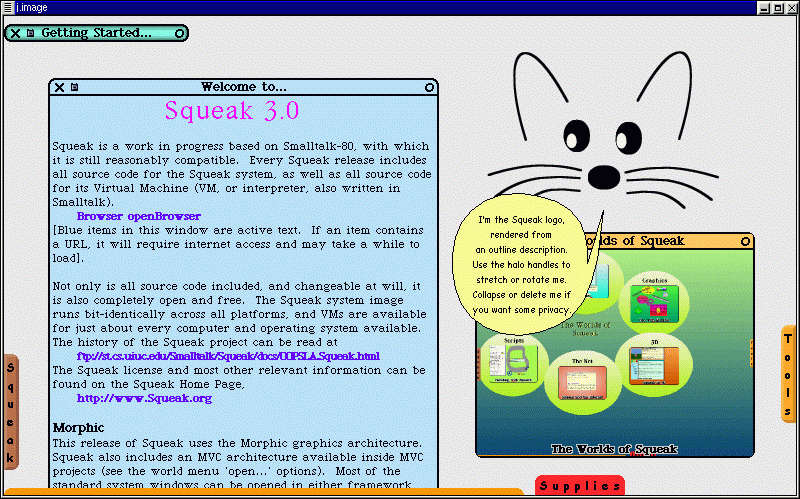

If you put the mouse curor over the logo, you'll notice the pop-up balloon help is enabled.

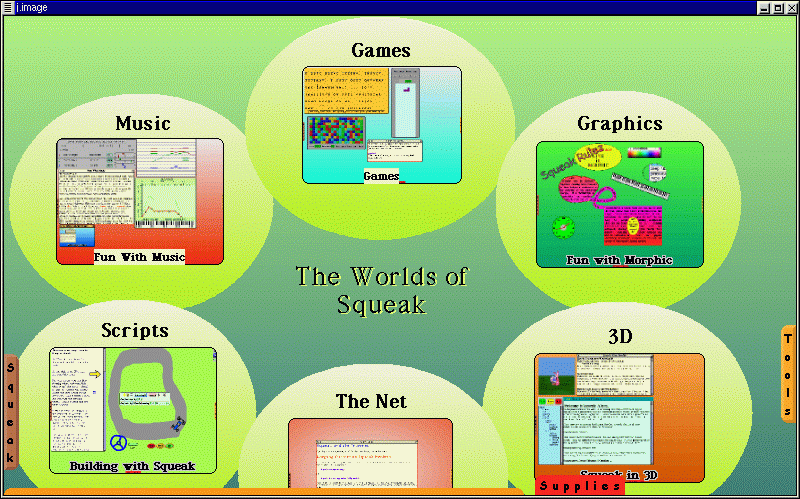

If you click on the project at the bottom right of the screen, it'll zoom to full screen size as you enter it.

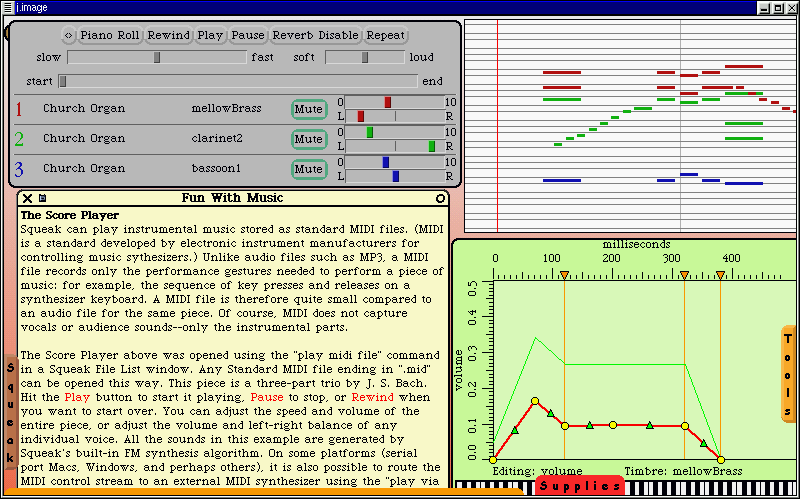

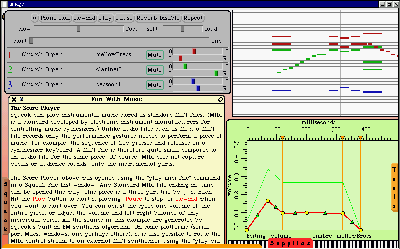

And finally, lets click on the music project to have a look.



Looking forward

    Alas, there will be no immediate looking forward due to my time constraints.   The next series I was planning covers some basic programming basics like:  unit testing (SUnit), source code management (change sets and SCAN), an object tour of commonly used objects, control structures, and Squeaklets.

    In the meantime though, I highly recommend downloading v3.0 of Squeak (noted below) and trying out the STP goodies as your first goodie exploration.  They're available from:  http://www.create.ucsb.edu/squeak/STP12.html

    I've enjoyed learning about Squeak over the past few months, and I hope you've enjoyed the series.


Smalltalk Code

Somebody pointed out to me that the ScopedBrowser used in Article 4 doesn't work properly in Squeak v3.0, so here's an updated version.
Note:  I noticed that SUnit is now included as part of the base image now, so I've included some programmatic unit tests.  After loading the code, if you wish to run the unit tests, do: TestModel openAsMorph, then click the Run button.  You'll notice 8 windows pop up and close, and there shouldn't be any errors listed in the error pane.


Copyright © 2001, Jason Steffler.
Copying license http://www.linuxgazette.com/copying.html
Published in Issue 65 of Linux Gazette, April 2001
